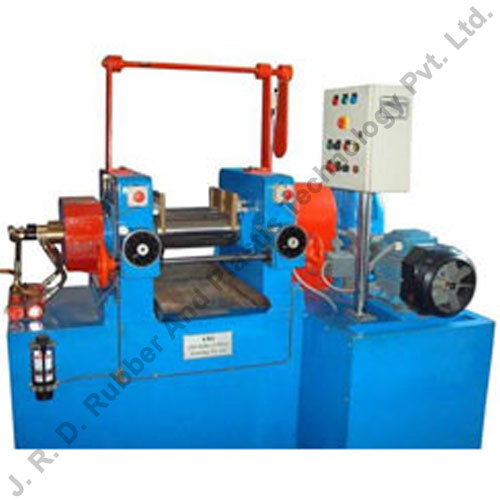

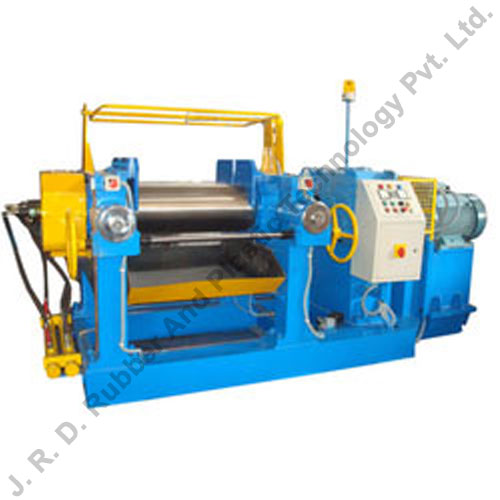

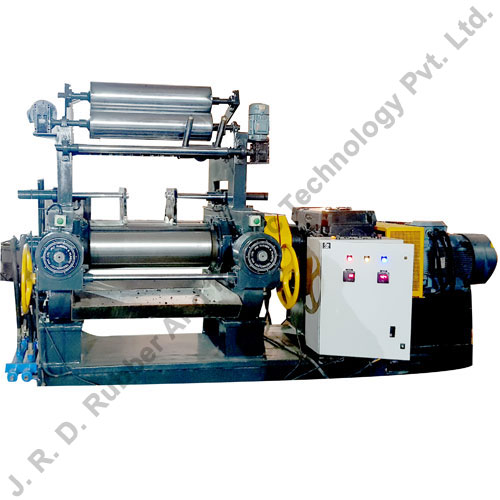

Two Roll Unidrive Mixing Mill

Are engineered to score over the conventional mills used for mixing of polymers between 2 rotating rolls in terms of higher efficiency and improved machine life. The transmission by 3-stage helical reduction gear box connecting drive motor to the rear roll coupled with anti friction roller bearings instead of bush bearings result in a substantial reduction in power consumption. Another futuristic feature on our mills is the optional addition of hydraulic sensing circuits incorporated for roll loading records of different batches / compounds.

JRD RUBBER MIXING MILL
Model	Roll Dimension				Drive Electric Motor		Batch capacity
	Diameter		Length
	INCH	MM	INCH	MM	HP	RPM	Kg/HR
MM-6"X13"	6	152	13	330	7.5	960	2-3
MM-12"X30"	12	305	30	760	30	960	15-20
MM-14"X36"	14	355	36	915	40	960	25-30
MM-16"X42"	16	406	42	1064	60	960	35-40
MM-18"X48"	18	457	48	1220	75	960	40-50
MM-22"X60"	22	560	60	1520	100	960	60-80
